Piling in Hard Ground Conditions

Understanding Hard Ground Conditions

“Hard ground” can refer to several types of resistance encountered during sheet piling or driven piling works, including:

• Dense clays or overconsolidated soils that resist penetration

• Gravels and cobbles which can deflect or damage piles

• Mixed or made ground containing brick, rubble, or concrete

• Old foundations, slabs, or reinforced obstructions left from previous structures

These conditions can cause pile refusal, excessive wear on equipment, or misalignment of the wall. In severe cases, they can even prevent piles from reaching the designed toe level, affecting the wall’s overall performance.

Why Early Ground Investigation Matters

Before any piling begins, accurate ground investigation is essential. A comprehensive site investigation typically includes:

• Borehole drilling and sampling to assess soil types and density

• Cone Penetration Testing (CPT) for continuous resistance data

• Geotechnical lab testing to determine shear strength and cohesion

• Trial drives or test piles to verify achievable depths and identify obstructions

These tests give engineers the information needed to plan the correct piling method, estimate driving resistance, and avoid surprises on-site. Even with good data, unexpected materials can still appear — which is why flexibility in equipment and approach is critical.

Common Difficulties in Hard Ground

When conditions are tougher than expected, contractors may encounter:

• Pile refusal before design depth

• Pile deflection or twisting caused by uneven resistance

• Excessive vibration or noise near sensitive structures

• Damage to pile interlocks or tips due to contact with rock, concrete, or rebar

Each of these issues can affect the structural integrity of the retaining wall and delay the programme. The key is having multiple strategies ready to respond quickly.

Typical Challenges and Recommended Solutions

Can Piles Be Driven into Rock?

In some cases, piles can be driven into rock — but it depends on the type of rock and the pile design.

• Soft rock or weathered limestone can often be penetrated using impact or vibro hammers.

• Harder formations such as granite or dense sandstone typically require pre-boring or socketing, where the pile is placed into a pre-drilled hole rather than driven.

• For sheet piling, direct driving into competent rock is rarely possible. Instead, piles are driven to “refusal” against the rock surface, forming a secure embedment, or seated into a pre-cut trench.

Specialist equipment, such as rotary rigs or rock augers, may be required to achieve the design depth. Understanding the bedrock level before starting work is vital to avoid premature refusal or pile damage.

Proven Solutions for Hard Ground Piling

1. Pre-augering

Pre-augering is one of the most effective ways to prepare for sheet piling in dense or obstructed ground. By drilling a narrow bore along the pile line before installation, resistance is reduced without removing too much material.

This helps:

• Break through cobbles and dense layers

• Minimise pile deflection

• Prevent refusal during vibro or silent pressing

It’s especially useful on brownfield sites or mixed fill where conditions are unpredictable.

2. Silent Pressing with Water Lubrication

In vibration-sensitive areas or when soils are extremely stiff, silent press-in systems such as the Giken can use water jetting or lubrication to reduce skin friction during installation.

A controlled flow of water is introduced at the pile toe, softening the soil immediately ahead of the pile and easing penetration.

Benefits include:

• Minimal vibration and noise

• Precise installation even in firm clay or dense sand

• Maintains alignment in restricted or urban sites

3. Pile Toe or Tip Modification

When working in abrasive or high-resistance soils, using reinforced or modified pile tips can make a significant difference. Options include:

• Welded shoes or drive tips for impact protection

• Specialised interlocks for improved penetration and watertightness

• Coatings or sacrificial layers to protect against abrasion

Selecting the right tip type depends on the expected strata and the installation method used.

4. Specialist Equipment and Adaptable Rigs

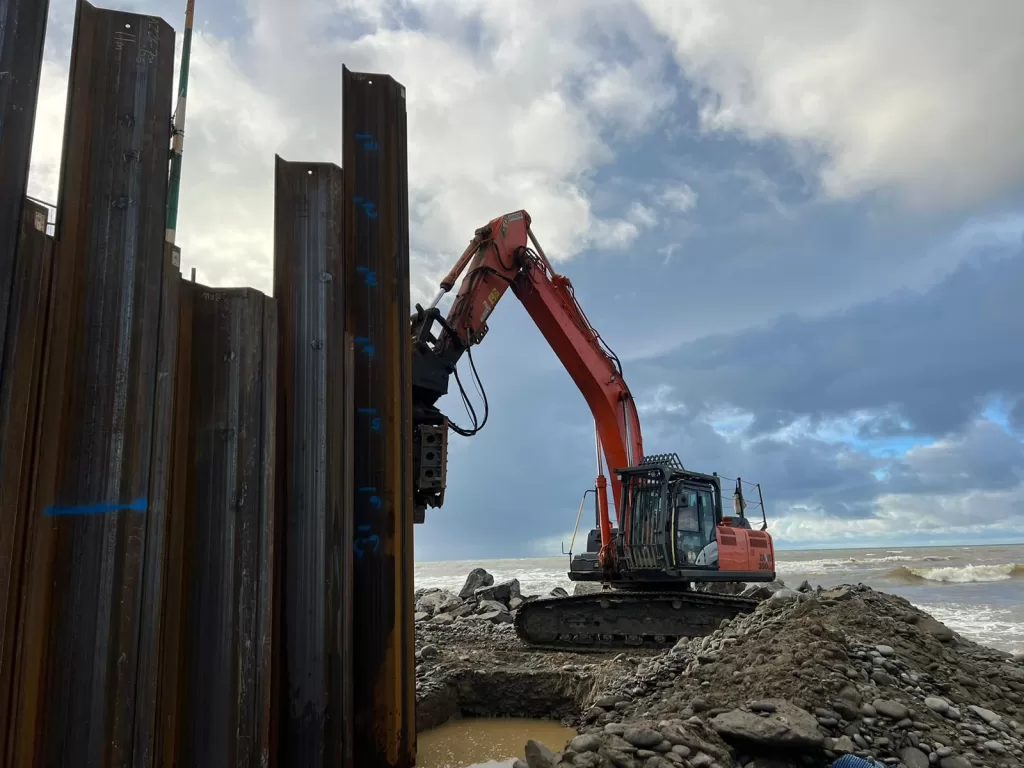

Modern piling rigs equipped with Movax, vibratory, or rotary attachments allow contractors to switch methods quickly if conditions change. For example, start with vibro driving for speed, then switch to pre-augering or press-in for harder sections.

This adaptability keeps progress steady and avoids downtime while awaiting alternative machinery.

5. On-site Testing and Real-time Adjustments

Even with detailed investigation, conditions can vary unexpectedly. Skilled operators will monitor:

• Penetration rates and resistance

• Equipment vibration and power output

• Alignment accuracy

If piles begin to refuse, stop and reassess — forcing a pile can cause damage or misalignment. A short trial bore or adjustment to the installation sequence can often resolve the issue without major delays.

What Are Optimal Ground Conditions for Piling?

Optimal ground conditions depend on the type of pile being used, but in general:

• Medium-dense sands or firm clays provide consistent resistance and good bearing capacity.

• Soft or loose soils may require longer piles or additional stabilisation.

• Very hard ground or rock demands pre-drilling or specialist installation techniques.

In practice, very few sites offer “perfect” conditions. The key is choosing the right installation method for the material encountered — something specialist sheet piling contractors can assess during early site testing.

(“What Are Optimal Ground Conditions for Piling?”)

Managing Unexpected Obstructions

Buried concrete, old foundations, and rubble are common in redevelopment and infrastructure projects. When encountered, the following steps usually apply:

1. Stop and inspect — never continue driving against a solid obstruction

2. Clear or core out the obstruction using rotary or percussive tools

3. Reinstate the bore with backfill or grout if needed

4. Resume piling using the appropriate method (pre-auger, press, or vibro)

Experienced contractors plan for this possibility and often have alternative plant available on standby.

Why Choosing the Right Contractor Matters

Hard ground conditions demand specialist knowledge, in-house equipment, and the flexibility to adapt quickly. A general contractor may not have the plant or experience to handle such complexity safely and efficiently.

A specialist sheet piling contractor like Steel Piling Solutions can:

• Conduct site-specific ground assessments

• Deploy pre-augering, silent piling, or vibro methods as required

• Provide experienced operatives who recognise early signs of refusal or deflection

• Deliver solutions nationwide with minimal disruption

Conclusion

Hard ground doesn’t have to mean hard work. With the right preparation, equipment, and expertise, piling can be carried out safely, efficiently, and to specification.

By combining early ground investigation with flexible installation methods such as pre-augering and silent pressing, contractors can overcome the toughest conditions without compromising accuracy or safety.
