How Do Sheet Piles Prevent Flooding?
Flooding is a growing concern across the UK, especially for commercial and infrastructure projects near rivers, coastlines, and low-lying land. One of the most effective yet under-discussed tools in flood defence is sheet piling. In this blog, we explain how sheet piles prevent flooding, the engineering behind them, and when they should be used as part of a flood mitigation strategy.
What Are Sheet Piles?
Sheet piling is a construction method that uses interlocking steel sheets to create a continuous vertical wall. These walls are driven into the ground to retain soil or water and are commonly used for temporary and permanent ground support, marine works, and flood defence applications.
At its core, sheet piling provides a fast and effective way to establish a watertight barrier—making it a key choice for stopping water ingress, stabilising embankments, and protecting land and assets from flooding. The interlocks between each pile section allow them to resist water pressure while maintaining ground integrity.
How Flooding Damages Infrastructure
Floodwater doesn’t only flow over the top of land or walls—it seeps under and through embankments, loosening soil and compromising structures. This is known as seepage and is a major cause of failure in traditional flood defences like earth banks or masonry walls.
Once enough water passes through or under a defence, it can cause:
Embankment instability and collapse
Erosion of supporting ground layers
Undermining of foundations
Long-term degradation of the structure
Sheet piles address these issues directly.
How Sheet Piles Prevent Flooding
Sheet piles act as a cut-off wall, blocking both surface and subsurface water movement. When installed deep enough, they penetrate below the permeable soil layers, creating a continuous vertical barrier that water can’t easily flow through or beneath.
This makes them especially effective in areas where flooding threatens to undermine embankments, breach riverbanks, or bypass conventional defences.
What Is a Cut-Off Wall?
A cut-off wall is a below-ground vertical structure designed to interrupt the movement of groundwater or floodwater beneath a defence line.
Steel sheet piles are a popular material for cut-off walls because:
They interlock to form a watertight system
They can be driven to significant depths
They perform well in mixed ground conditions
They are easy to adapt, remove, or extend
When used properly, a sheet pile cut-off wall prevents seepage that could otherwise lead to piping, settlement, or total failure of a flood embankment.
Seepage Control and Groundwater Movement
Water will always take the path of least resistance. In flood events, water naturally tries to seep underneath flood walls or levees—especially in sandy or layered soils. This is where failure often starts.
Sheet piles control this by:
Cutting through permeable soil layers
Forcing water to take a longer, higher-resistance path
Reducing water velocity and pressure on the protected side
In some cases, sealants or welded interlocks are used to improve watertightness, especially in high-risk areas like cofferdams or deep basements near floodplains.
Sheet Pile Flood Wall Design Considerations
When designing sheet pile walls for flood defence, engineers account for:
Flood level and freeboard (how high the wall must extend above predicted water levels)
Soil conditions (to determine required embedment depth)
Lateral pressure from water and soil
Corrosion potential (especially in tidal or saline areas)
Tie-back or anchoring systems (for tall or highly loaded walls)
At Steel Piling Solutions, we often design sheet pile flood walls for 50–100 year design life, using coatings or weathering steel to manage corrosion.
Temporary vs. Permanent Flood Defences
Sheet piles are used in both temporary and permanent flood applications:
Temporary cofferdams during construction works
Demountable flood walls that can be left in place or removed
Permanent river or tidal barriers integrated into infrastructure
This versatility makes them a smart investment for both emergency situations and long-term protection schemes.
Example Applications in the UK
Steel sheet piles have been used successfully in flood defence schemes across the UK, including:

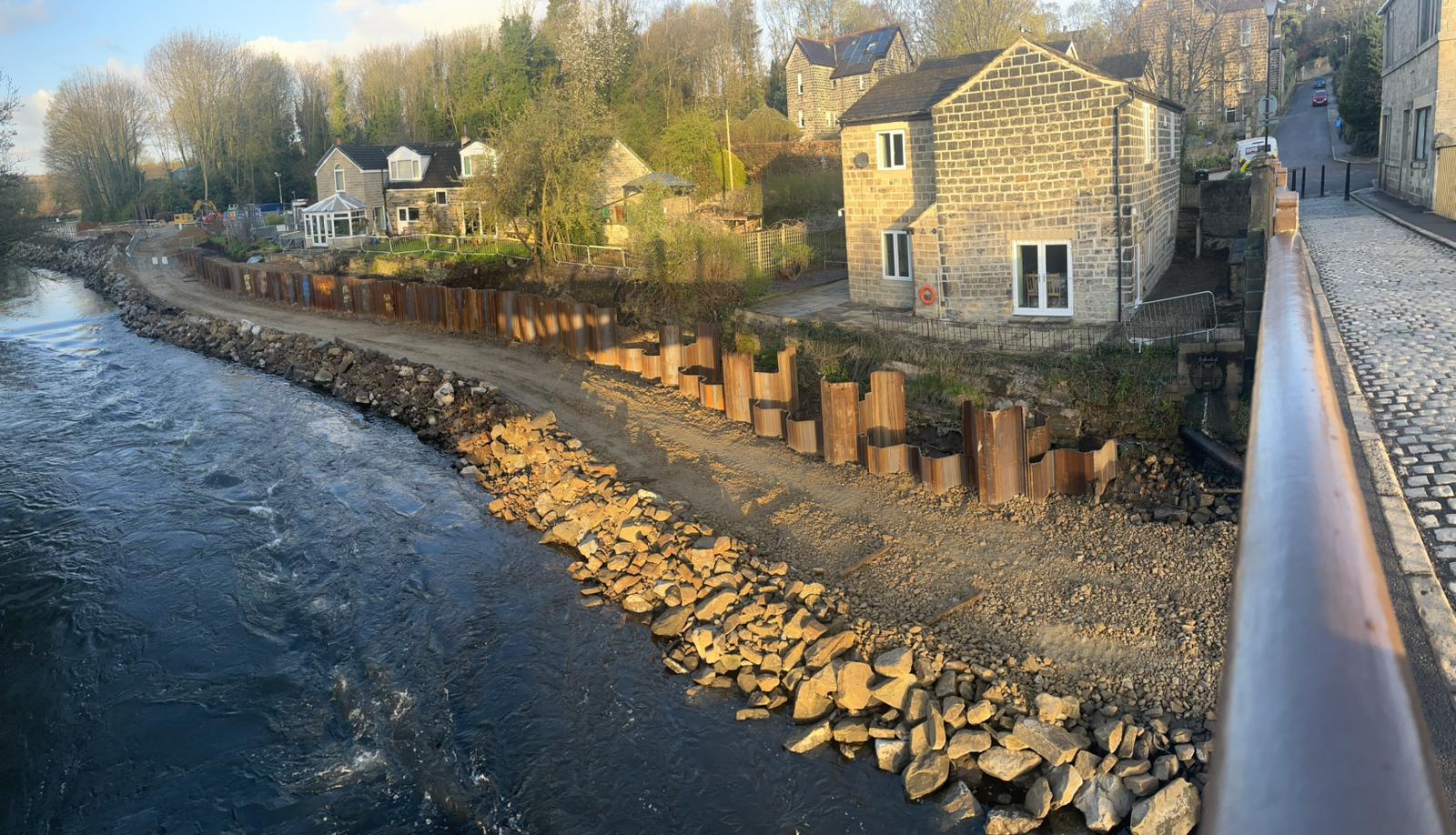

Riverbank reinforcement for industrial estates
Tidal barriers along the south coast
Sheet pile cut-offs installed through existing embankments to strengthen them from below
Urban flood walls installed in sensitive areas using silent press-in methods
In many cases, they are combined with concrete capping beams, parapets, or nature-based defences to deliver complete systems.
Common Questions About Flood Defence Sheet Piling
Do sheet pile walls leak? Steel sheet piles interlock tightly and typically control seepage effectively. For high-risk areas, sealants or welded interlocks can be used.
Can you drive sheet piles through existing flood defences? Yes. Silent press-in rigs can install sheet piles through earth embankments without removing them, preserving habitat and structure.
Do sheet piles rust underground? The buried portion corrodes very slowly due to lack of oxygen. Above-ground sections are coated or galvanised as needed.
Are they noisy to install? Vibratory and impact methods create some noise, but silent pressing is nearly vibration-free and ideal for urban or sensitive sites.
What Is Sheet Piling?
Sheet piling is the broader technique of using interlocking steel sections to retain soil or water. While this blog focuses on flood defence, sheet piling is used across many construction and infrastructure sectors.
For a full overview of how sheet piling works—including its history, materials, and other applications—visit our What Is Sheet Piling? guide.
Conclusion: Why Sheet Piling Works
Sheet piling is a proven, flexible, and long-lasting solution for flood defence. By creating a deep barrier that stops water from moving through or under your site, sheet piles provide protection where traditional walls and embankments often fail.
For commercial flood defence projects where resilience, speed, and safety matter—sheet piles deliver.
